Drill Press Guard, Large DPG-2 Product Photo by ATS Safety

Drill Press Guard, Heavy Duty. Large Machines - Available in Standard or Interlocked Versions

by ATS Machine Safety Solutions
5 reviews
$837.00
$837.00 - $1,102.00
$837.00
$744.00
$744.00 - $992.00
$744.00
Availability:
In stock, ships the same business day if ordered by 3PM ET
Availability:
In stock, ships the same business day if ordered by 3PM ET
Availability:
In stock, ships the same business day if ordered by 3PM ET
PART NUMBER: DPG-2
Select from Standard or 2 Types of Interlocked Models: Standard Model (Part # DPG-2)
Request a Quote for Quantity

Fitment

Fits machines with column diameters of 4.0 - 6.5"  (Measurement D in photo)

AND Throat distances of up to 18". (Measurement C in photo)

Shown on Grizzly G0751 Drill Press

If your dimensions are larger or you do not have a round column, please see our part # MG-4

Part Numbers:

DPG-2 - Standard Model, no interlock. $585.00

DPG-2-SK1 - Interlocked Drill Guard Model. Magnetically Actuated Safety Interlock Switch. Dual Voltage 120VAC / 24VDC.  $770.00

DPG-2-SK2 - Interlocked Drill Guard Model. 24V DC Power Supply Required, RFID Style Safety Interlock Switch    $770.00



Features

  • Available with or without a safety interlock switch. Select when ordering. Safety switches are rated to only 2 amps and require some form of motor control to adapt to your 3 phase machine.  Safety interlock retrofit can be purchased and easily added to existing guards later on.
  • Drill press safety shield protects operators from flying chips, coolant, and accidental contact with the rotating cutter / spindle. Polycarbonate shield (lexan) 1/4" thick
  • Front arm swings open to the left 180 degrees for easy setup and work access
  • Articulating arms allow operator to easily position the shield to fit different work-pieces or fixtures
  • Installs in minutes - Truly bolt-on, no drilling required
  • Clamps to the machine's round column and designed to clear the gear rack
  • Heavy duty steel adjustable handles- pull out and orient 360 degrees
  • Curved Lexan shield- 10" wide x 8" high with 4" deep sides.
  • Standard Shield: 8" tall. Taller shields are available. Go to the replacement shield page to order 12" tall RDS-1
  • All CNC billet aluminum construction, Powder coated "OSHA Safety Orange"
  • If you are unsure of which drill press guard to select, please click here for the dimension form.  Complete the form and email us.
Customer Reviews
5.0 Based on 5 Reviews
5 ★
100%
5
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
WS
02/25/2021
Warren S.
United States United States

Excellent Quality

We bought 5 to protect workers from tapping machines. All installed very easy and work very well.

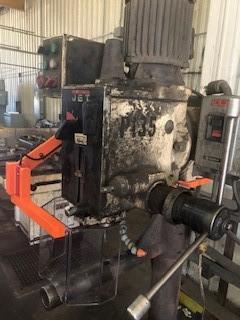

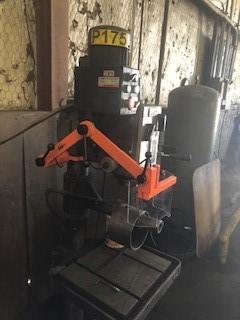

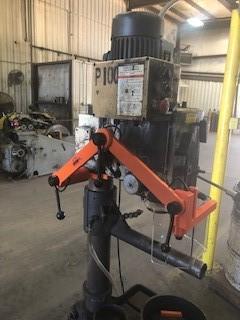

ATS Machine Safety Solutions Drill Press Guard (Up to 18 Throat) ReviewATS Machine Safety Solutions Drill Press Guard (Up to 18 Throat) ReviewATS Machine Safety Solutions Drill Press Guard (Up to 18 Throat) Review
