Anti-Restart Motor Control Box, E-STOP: 15 Amp, 120v, Single Phase.
Original price
€436,95
-
Original price
€436,95
Original price
€436,95
€436,95
-
€436,95
Current price
€436,95
Availability:
In stock, ships the same business day if ordered by 3PM ET
PART NUMBER: GS-104 ATS
Motor Control 120 Volt 15 AMP With Anti-Restart Capability
Part Number: GS-104 ATS

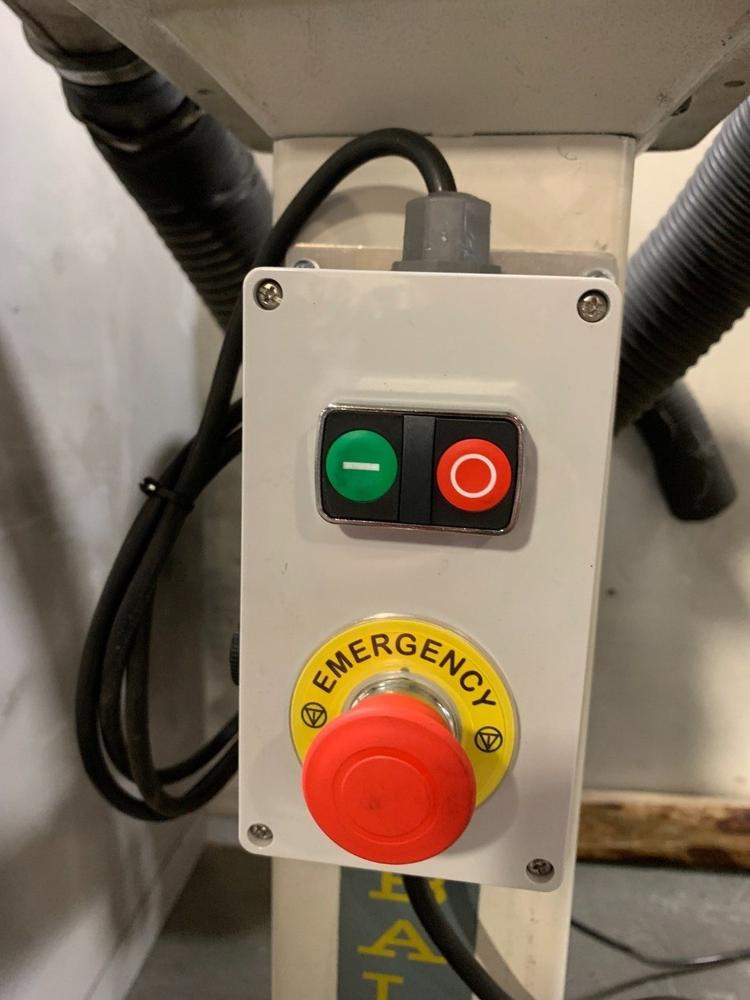

120 VAC / 15 amp Single-Phase Motor control box provides a Stop/Start circuit along with a latching Emergency Stop Button, 8’ power cord with molded male 15 amp wall plug, and a 4' Pig Tail for direct wiring to your machine.
- Functions as an anti-restart device to prevent machines from automatically restarting after a power loss.
- Adds a 15 amp E-stop box to your machine.
- Contains a Siemens 120VAC power relay for motor control function
- Single-phase motor control box allows you to connect a 120V safety switch to relay
- The machine's existing electrical cord has to be hard-wired into the GS-104. A 48” Pig Tail is included and can be used if needed.

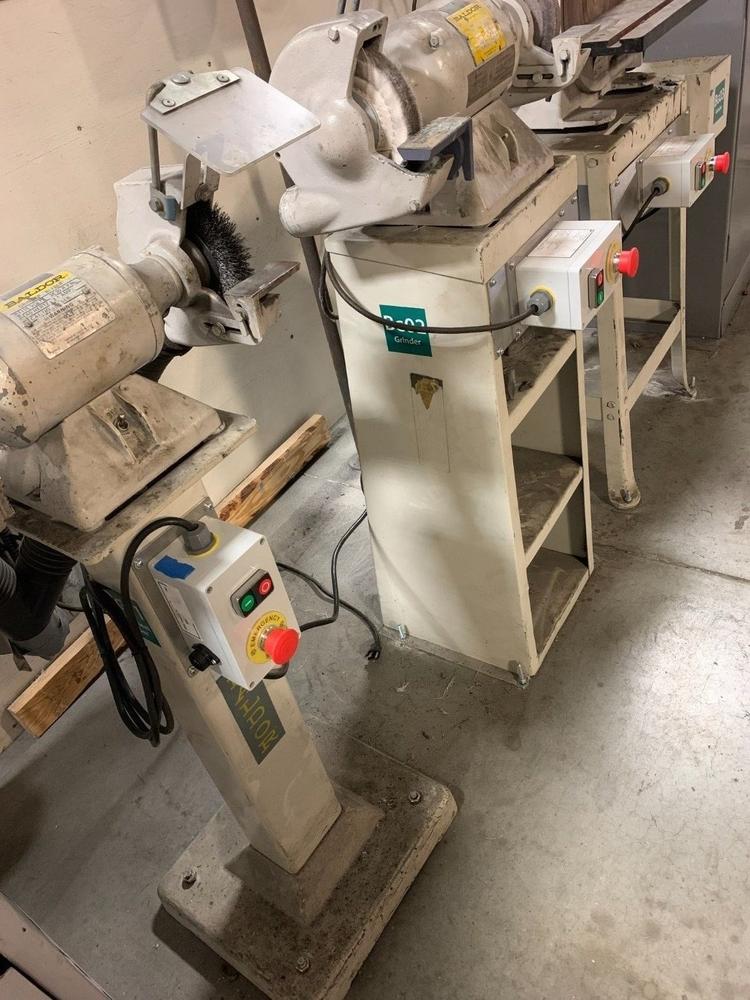

- Ideal for meeting current electrical standards (NFPA 79) for smaller machinery such as belt sanders, drill presses, and grinders.
- Contains 15A fuse
- UL 508 Listed, cULus 508A ULC Canada approved
- Aluminum mounting plate measures 7.5" x 4.5" x 1/8" thick. Hole pattern of mount plate: 4.0" x 6.75" Diameter of mounting holes: 1/4"
- The box itself measures 6 3/8" long x 3 1/2" wide x 3 5/8" tall
