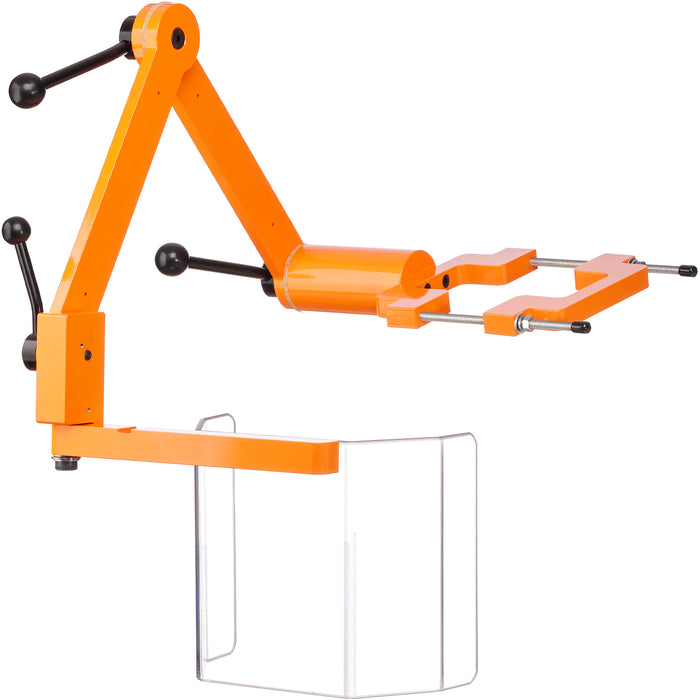

Drill Press Guard, Large DPG-2 Product Photo by ATS Safety

Drill Press Guard, Heavy Duty. Large Machines - Available in Standard or Interlocked Versions

by ATS Machine Safety Solutions
5 reviews
$ 12,078.00
$ 12,078.00 - $ 15,898.00
$ 12,078.00
$ 10,736.00
$ 10,736.00 - $ 14,308.00
$ 10,736.00
Availability:
In stock, ships the same business day if ordered by 3PM ET
Availability:
In stock, ships the same business day if ordered by 3PM ET
Availability:
In stock, ships the same business day if ordered by 3PM ET
PART NUMBER: DPG-2
Select from Standard or 2 Types of Interlocked Models: Standard Model (Part # DPG-2)
Request a Quote for Quantity

Fitment

Fits machines with column diameters of 4.0 - 6.5"  (Measurement D in photo)

AND Throat distances of up to 18". (Measurement C in photo)

Shown on Grizzly G0751 Drill Press

If your dimensions are larger or you do not have a round column, please see our part # MG-4

Part Numbers:

DPG-2 - Standard Model, no interlock. $585.00

DPG-2-SK1 - Interlocked Drill Guard Model. Magnetically Actuated Safety Interlock Switch. Dual Voltage 120VAC / 24VDC.  $770.00

DPG-2-SK2 - Interlocked Drill Guard Model. 24V DC Power Supply Required, RFID Style Safety Interlock Switch    $770.00



Features

  • Available with or without a safety interlock switch. Select when ordering. Safety switches are rated to only 2 amps and require some form of motor control to adapt to your 3 phase machine.  Safety interlock retrofit can be purchased and easily added to existing guards later on.
  • Drill press safety shield protects operators from flying chips, coolant, and accidental contact with the rotating cutter / spindle. Polycarbonate shield (lexan) 1/4" thick
  • Front arm swings open to the left 180 degrees for easy setup and work access
  • Articulating arms allow operator to easily position the shield to fit different work-pieces or fixtures
  • Installs in minutes - Truly bolt-on, no drilling required
  • Clamps to the machine's round column and designed to clear the gear rack
  • Heavy duty steel adjustable handles- pull out and orient 360 degrees
  • Curved Lexan shield- 10" wide x 8" high with 4" deep sides.
  • Standard Shield: 8" tall. Taller shields are available. Go to the replacement shield page to order 12" tall RDS-1
  • All CNC billet aluminum construction, Powder coated "OSHA Safety Orange"
  • If you are unsure of which drill press guard to select, please click here for the dimension form.  Complete the form and email us.
