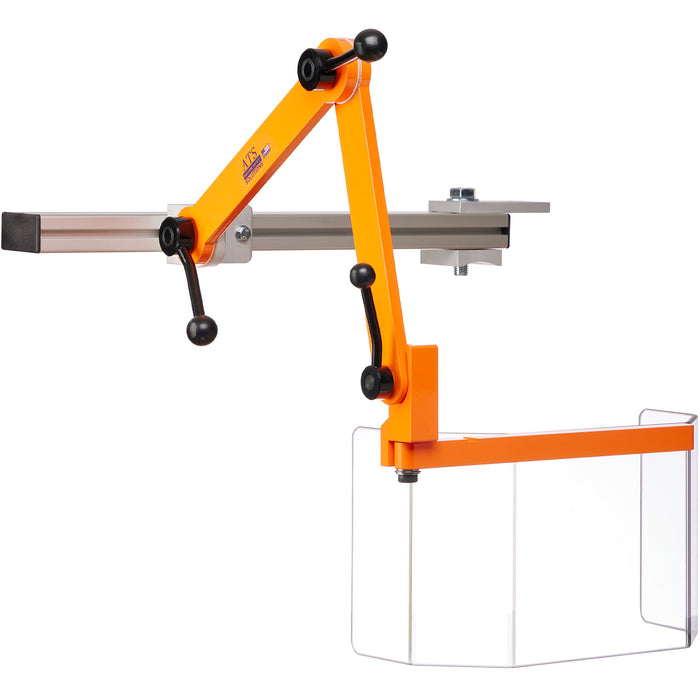

Ram Mount Milling Machine Guard

Original price $745.00 - Original price $930.00
Original price
$745.00
$745.00 - $930.00
Current price $745.00
Availability:
In stock, ships the same business day if ordered by 3PM ET
Availability:
In stock, ships the same business day if ordered by 3PM ET
PART # MG-3
Select Standard or Interlocked Model: Standard Model (Part # MG-3)
Request a quote

Part #'s

MG-3 - Standard Model, no interlock. $745.00

MG-3-SK1 - Interlocked Model. Magnetically Actuated Safety Interlock Switch. Dual Voltage 120VAC / 24VDC.   $930.00





Features

  • Installs in minutes on most manual vertical milling machines- Truly bolt-on. No drilling into machine is required!
  • Bolts to the large threaded hole on top of the ram originally used as the lifting point.   Designed around a series I Bridgeport, but fits most brands out there. We supply the correct hardware/ arm length based on the machine brand.  Enter your machine's brand (or the 2 measurements from last product photo) before adding to cart.
  • Available with or without a safety interlock switch. Select when ordering. Safety switches are rated to only 2 amps and require some form of motor control to adapt to your 3 phase machine.  Safety interlock retrofit can be purchased and easily added to existing guards later on.
  • Protects operators from flying chips, coolant, and accidental contact with the rotating cutter / spindle.  Polycarbonate shield (lexan) 1/4" thick
  • Front arm swings open to the left 180 degrees for easy setup and work access
  • D.R.O mount extender included (since this is where most DRO's mount)
  • Milling machine chip guard features heavy duty steel adjustable handles- pull out and orient 360 degrees
  • Articulating arms allow operator to easily position the shield to fit different work-pieces or fixtures. Guard can also be adjusted left to right on the rail.
  • Ram mount milling machine guard works with head tilted left/right, as shown with optional flat shield
  • Includes curved lexan shield
  • Standard Shield: 9" tall. Taller shields are available. Go to the replacement shield page to order 12" tall RMS-1
  • Industrial T-slot extrusion provides a way to mount work lamp or other accessories.
  • All CNC billet aluminum construction, Powder coated "OSHA Safety Orange"
